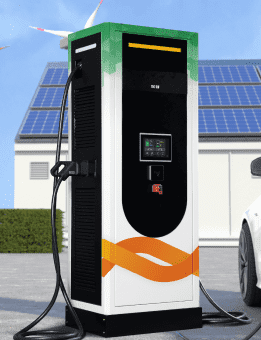

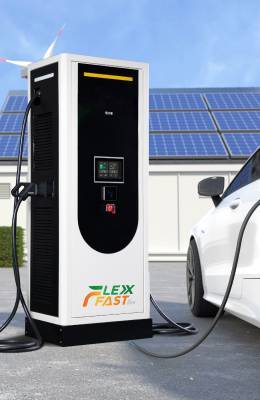

DC Charger Flexxfast by EDS

A Direct Current (DC) charger is a device used to supply electric vehicles (EVs) with direct current electricity to charge their batteries. There are different types of DC chargers, such as CHAdeMO and Combined Charging System 2 (CCS2), each with its own specifications and compatibility with different electric vehicle models. Flexxfast by EDS focusing to provide CCS2 charger because CCS2 is a fast-charging standard developed primarily by European and North American automakers. CCS2 chargers come in various power levels, ranging from 50 kW to 350 kW or more. This flexibility allows for faster charging when compared to other chargers. CCS2 has broader support from a wide range of automakers, including European and American manufacturers. It is increasingly seen as the global standard for fast charging, promoting interoperability among different EVs.

DC Charger Flexxfast by EDS Types


Flexxfast

COZY

  • DC Power Maximum: 60kW
  • EMC: IEC61851-21
  • Input: TNS (3P N.PE)
  • Frequency Range: 50/60(45-65)
  • Output: 130-1000 VDC
  • Max Current: 200A
  • Dynamic Charging (kW): 30+30
Flexxfast

COMMUTE

  • DC Power Maximum: 120kW
  • EMC: IEC61851-21
  • Input: TNS (3P N.PE)
  • Frequency Range: 50/60(45-65)
  • Output: 130-1000 VDC
  • Max Current: 400A
  • Dynamic Charging (kW): 60+60
Flexxfast

COSMIC

  • DC Power Maximum: 150kW
  • EMC: IEC61851-21
  • Input: TNS (3P N.PE)
  • Frequency Range: 50/60(45-65)
  • Output: 130-1000 VDC
  • Max Current: 400A
  • Dynamic Charging (kW): 60+90
